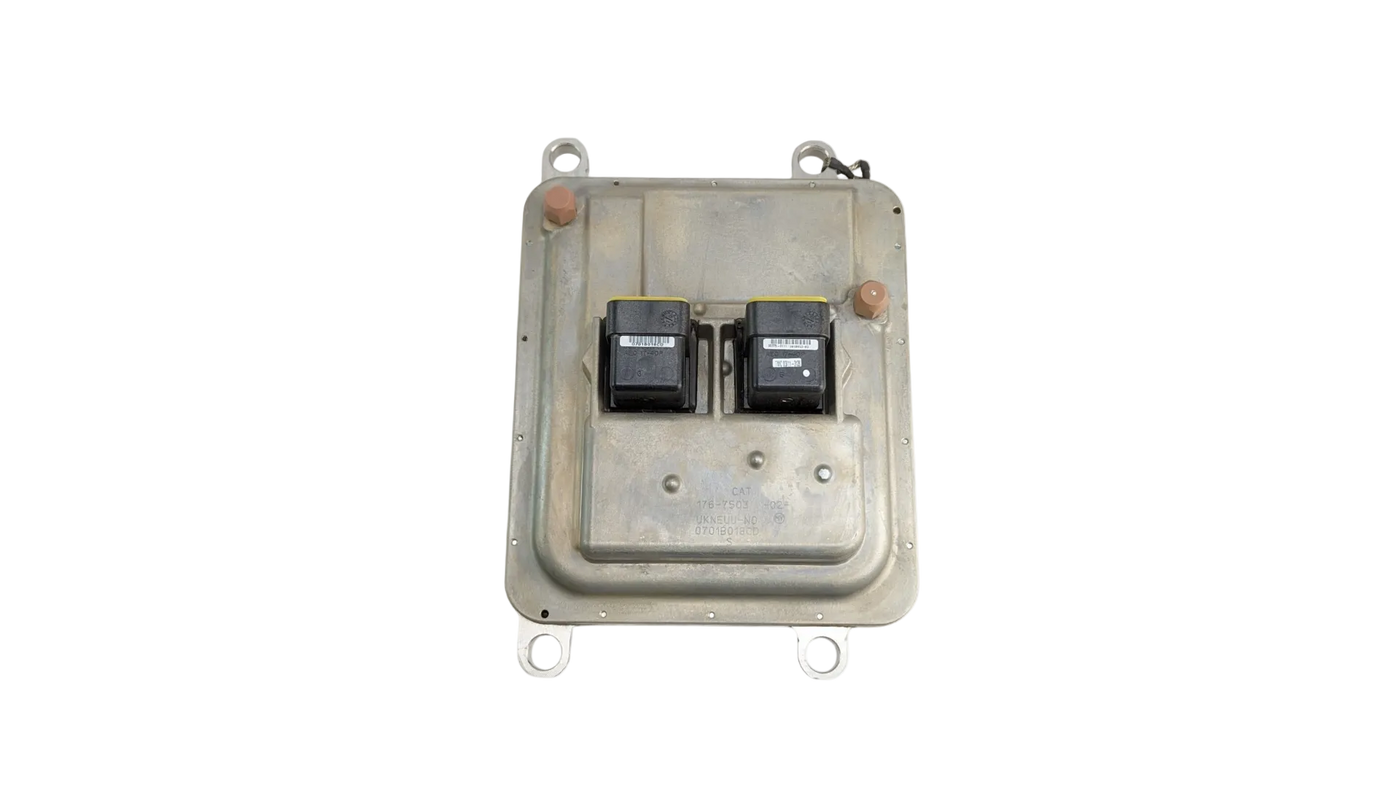

Cat 176-7503 Electronic Control Module (ECM) – Genuine Caterpillar ECM

The Cat 176-7503 is a genuine Caterpillar ECM for 3508B, 3512B and 3516B engines. It runs fuel injection timing and quantity, monitors the sensors across the engine and stores the fault codes techs pull during diagnostics. 176-7503 ships without machine specific programming, so it has to be flashed to your engine serial number and application before it will run.

Key Functions:

- Controls injection timing and fuel quantity
- Monitors engine sensors and protects against out of range conditions
- Stores and reports fault codes for diagnostics

Fitment & Specifications:

- Engines 3508B, 3512B, 3516B
- Off-highway trucks 776D, 777D, 784C, 785C, 789B, 793D, 797B
- Excavators 5130B, 5230B
- Loaders 854G, 992G
- Tractors D11N, D11R
- Also used in marine and generator set builds

Requires flashing with Cat ET. Verify by engine serial number before ordering.

Purpose of the Part

176-7503 is the computer that runs the engine. It takes readings from the speed, timing, pressure and temperature sensors, works out how much fuel to deliver and when, and commands the injectors. It also handles engine protection, so if oil pressure drops or coolant temp climbs it derates or shuts down before damage happens. Every fault code the machine logs comes out of 176-7503.

Issue Symptoms / When to Replace

A failing 176-7503 usually shows up as no start with no communication, or a machine that runs then quits and comes back after it cools. Recurring faults across unrelated circuits point at the module rather than the sensors. Other signs are codes that will not clear, no comms with Cat ET, erratic fuel delivery and low power with nothing wrong upstream.

Water intrusion and corrosion at the connectors is the common killer on these, along with jump starting and welding on the machine without disconnecting. Before replacing 176-7503, check the connector pins for corrosion and bent terminals, verify battery voltage and grounds, and check the harness for chafed wires. Bad grounds and low voltage cause the same symptoms as a dead module.

Brand Information

Caterpillar builds these modules alongside the engines and the software that runs them, so the ECM, the flash files and Cat ET all come from the same source. Flash files are released by Cat against the engine serial number, which means a genuine module is what takes the correct file and keeps the machine serviceable at any Cat dealer. Non genuine modules will often power up and communicate but will not accept the right file, lose calibration, or get rejected outright during a dealer update.

Cat also backs these through the Reman program, where used cores are torn down and rebuilt to the original spec with any component that fails inspection replaced, rather than just being repaired around the fault.

Installation Notes

176-7503 is not a plug and play part. It ships without machine specific programming and has to be flashed with Cat ET to the correct engine serial number, application and parameters before the engine will run. Take it to a Cat dealer or a qualified diesel shop with Cat ET access to have it programmed and set up.

How to Identify an OEM Part

A genuine unit has the markings stamped directly into the metal housing, not printed on or applied with a sticker. You should see CAT stamped on the case along with the part number, a revision suffix, and a manufacturing or date code below it. Check that the part number stamped in the housing matches what you ordered.
