Description

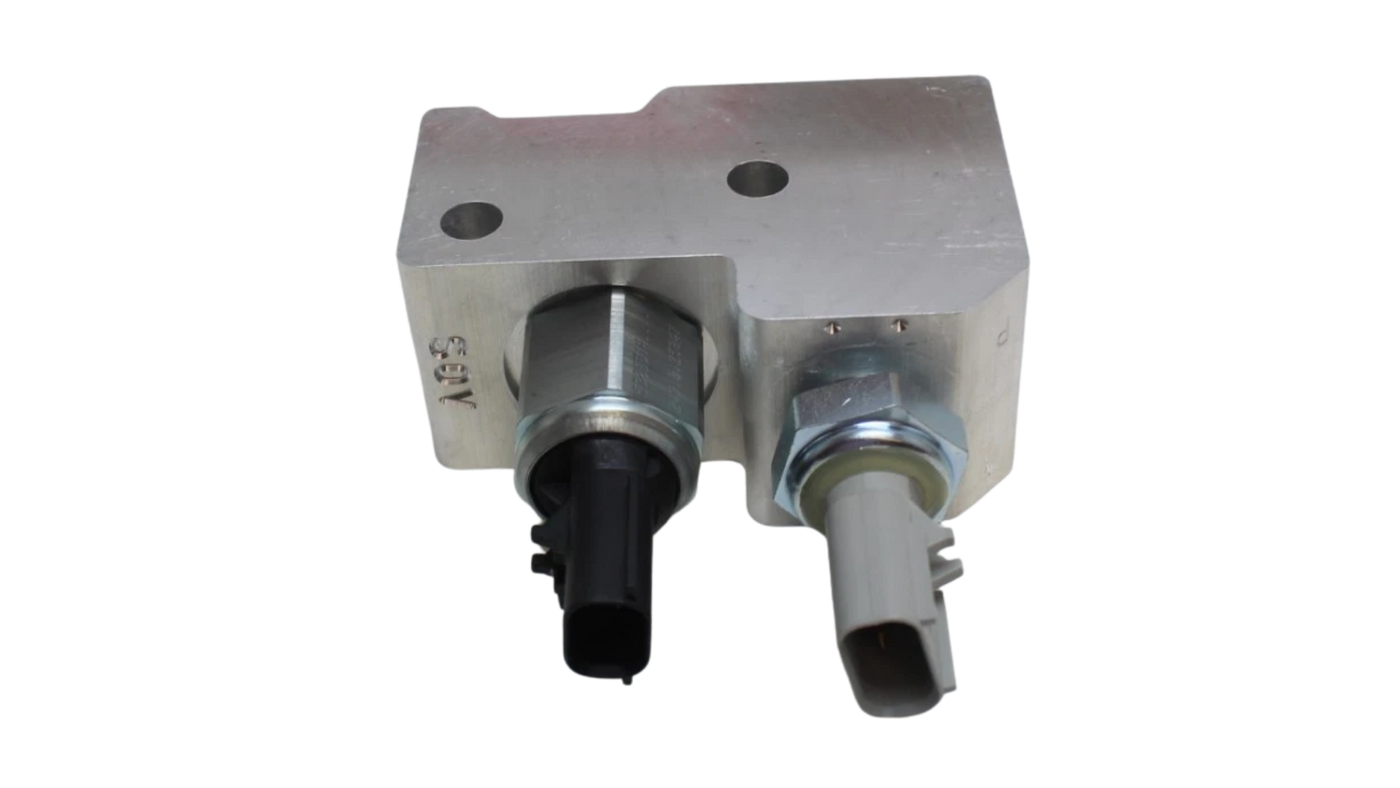

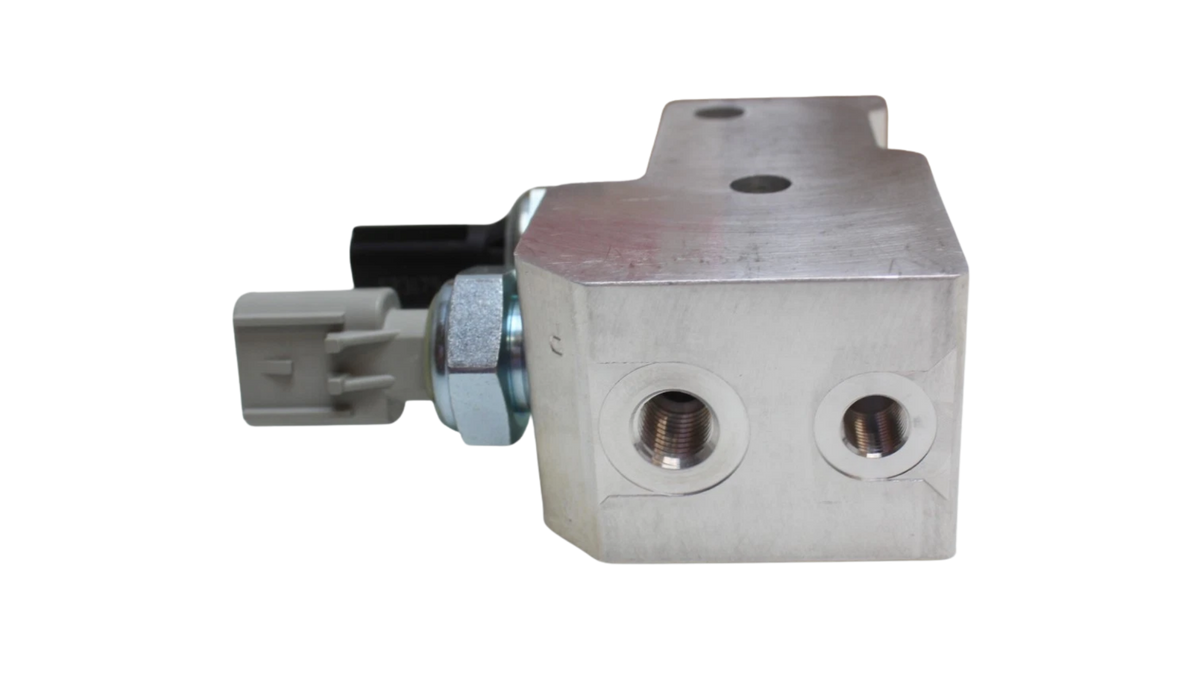

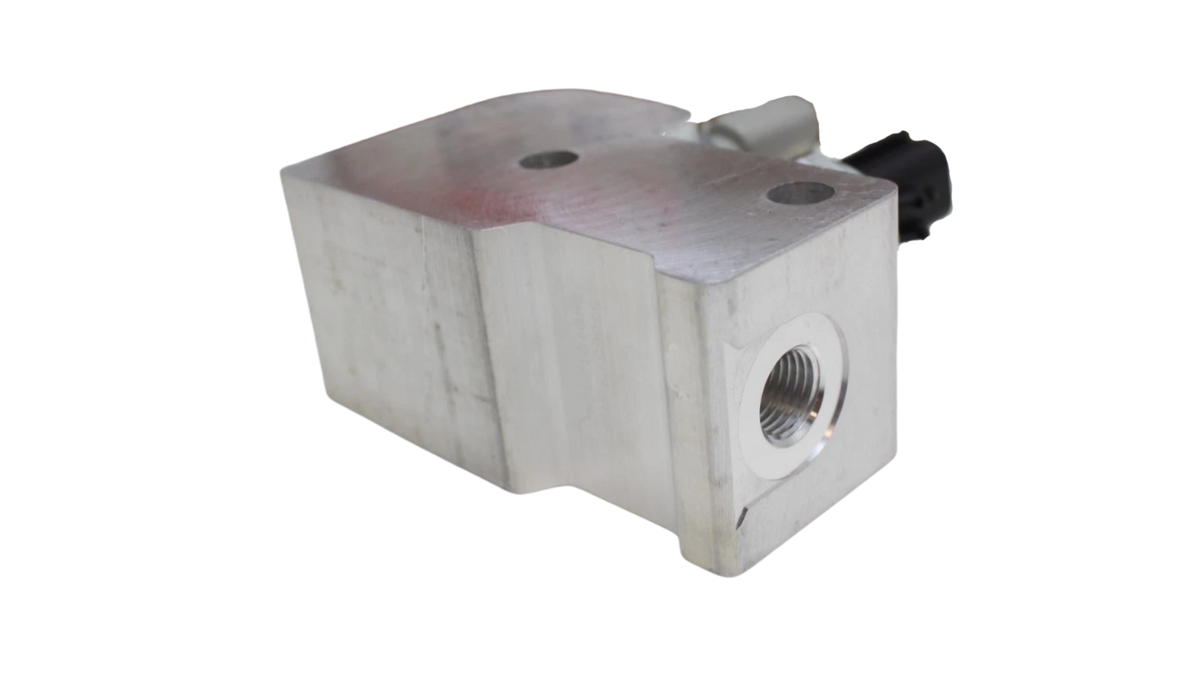

Cummins 3017691C91 Doser Fluid Shutoff Valve - Genuine Cummins Aftertreatment Component

The Cummins 3017691C91 is a genuine Cummins doser fluid shutoff valve, part of the XPI fuel system feeding the aftertreatment doser. It opens and closes on command from the engine control module to regulate doser fluid delivery, and closes to stop flow when dosing is not called for.

Key Functions:

- Controls doser fluid flow to the aftertreatment doser
- Opens and closes on ECM command
- Shuts off flow when dosing is not commanded

Fitment & Specifications:

- Engines: ISX CM570, ISX CM870, ISX CM871, ISX CM871 E, ISX15 CM2250, ISX15 CM2250 SN, ISX15 CM2350 X101, ISZ13 CM2150 SN, QSX11.9 CM2250 ECF, QSX15 CM2250, QSX15 CM2250 ECF, QSX15 CM2250 X115, QSX15 CM2350 X105, QSX15 CM2350 X106, QSX15 CM2350 X118, QSX15 CM570, QSZ13 CM2150 Z101, QSZ13 CM2150 Z102, R2.8 CM2220 R101B, X12 CM2350 X119B, X15 CM2350 X114B, X15 CM2350 X116B
- System: XPI fuel system

Verify fitment with us before ordering to ensure the correct part for your application.

Purpose of the Part

The 3017691C91 sits in the doser supply circuit and acts as the on/off gate for doser fluid. During a regeneration the ECM opens the valve so fluid can reach the doser; when dosing ends the valve closes so nothing continues to feed the exhaust stream. A valve stuck closed starves the doser, and a valve that fails to seal lets fluid pass when it should not.

Issue Symptoms / When to Replace

Regens that fail to complete or never initiate, doser circuit fault codes, and aftertreatment derate. A valve that leaks past its seat can put fluid into the exhaust outside of a commanded regen, which shows up as abnormal exhaust temperatures or fuel odor.

Check the doser injector and the supply line before condemning the valve. They present with overlapping symptoms.

Brand Information

Cummins has built diesel engines since 1919 and is one of the largest independent engine manufacturers in the world. Its Cummins Emission Solutions division builds the aftertreatment hardware for these engines, with the dosing components matched to the engine's regeneration strategy.

Installation Notes

Relieve system pressure before opening the doser circuit.

Inspect the doser injector while the circuit is apart. A valve that failed by leaking will usually have left deposits downstream.

How to Identify an OEM Part

Cummins part number on the valve body.
