Description

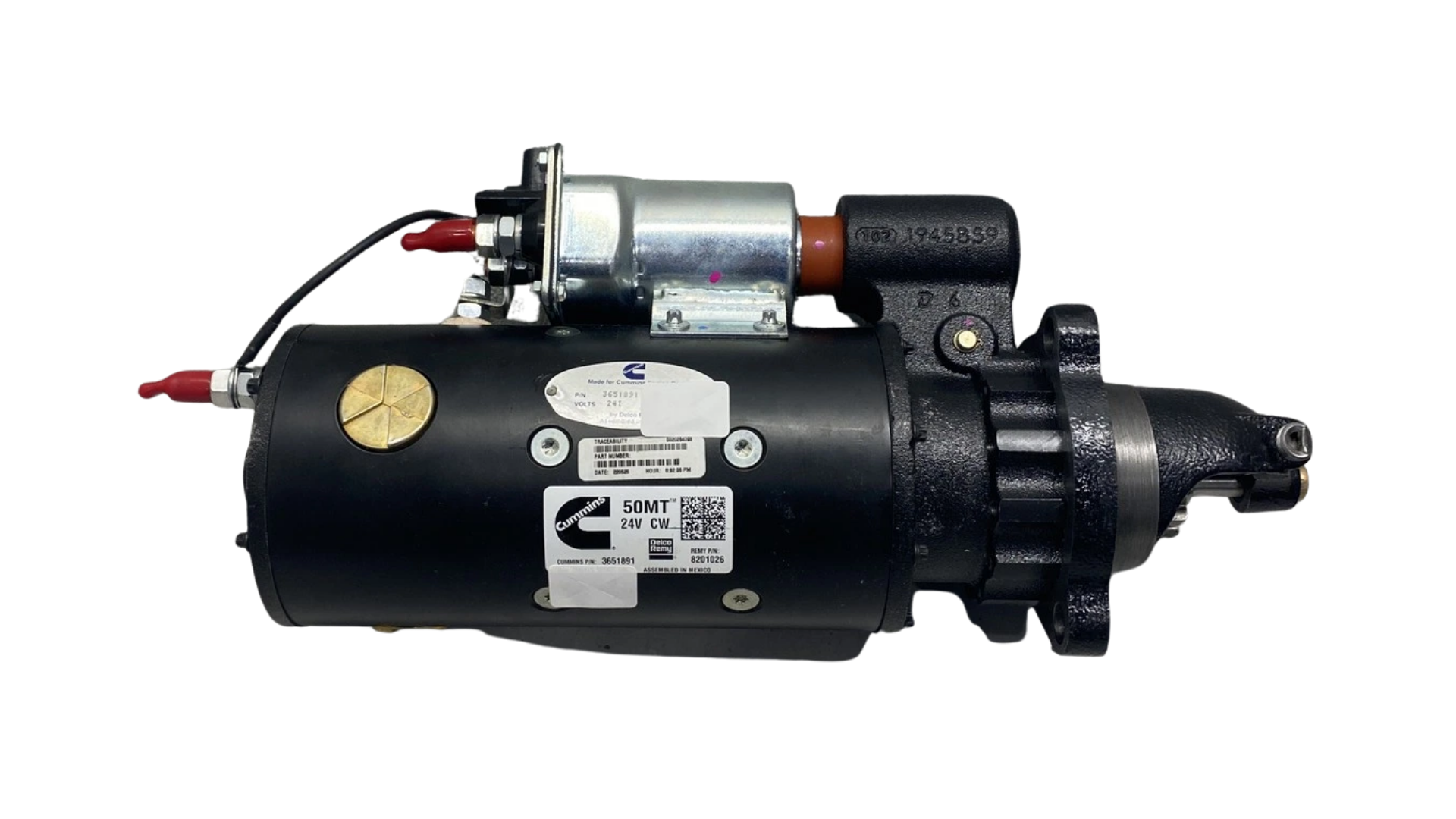

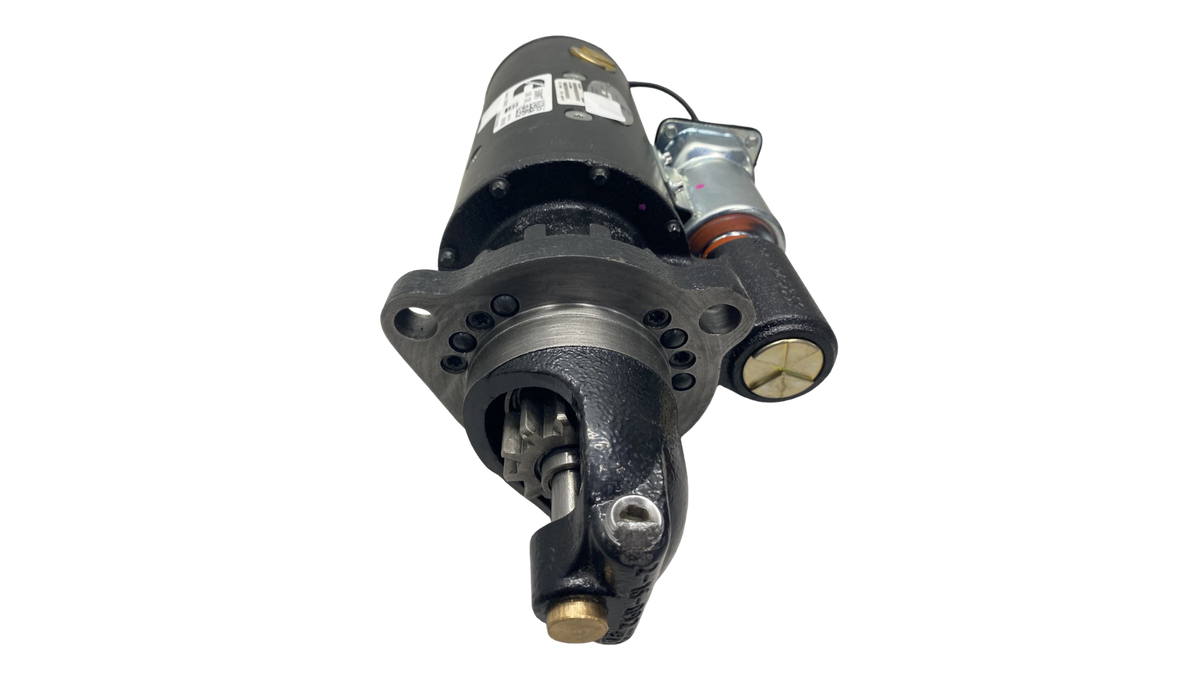

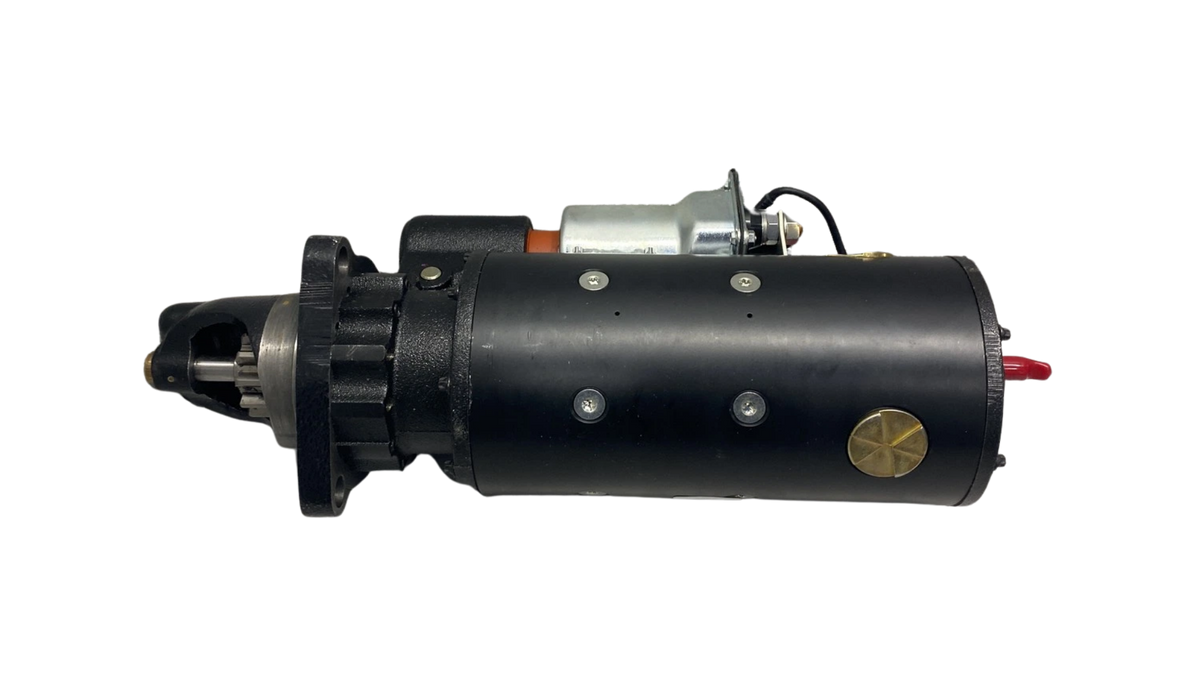

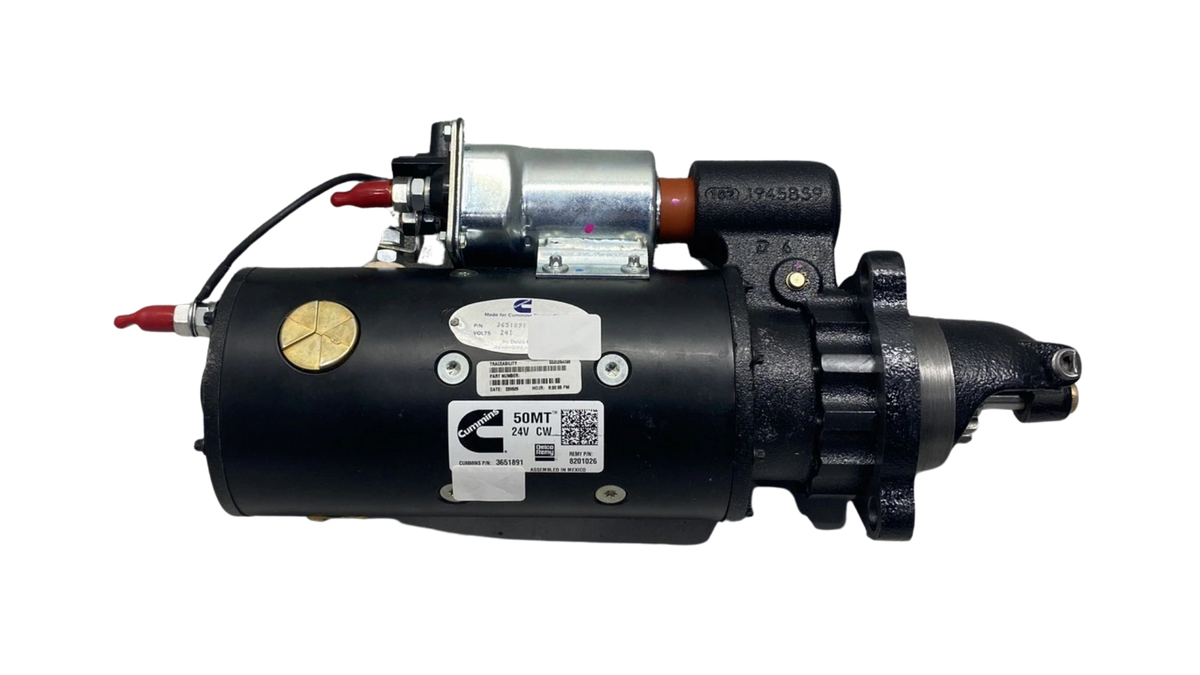

Cummins 3651891 Starter Motor - Genuine Cummins 24V Delco Remy 50MT Starter

The Cummins 3651891 is a genuine Delco Remy 50MT starter, 24 volt, clockwise rotation, built for Cummins engines. The 50MT is a heavy duty starter used on large displacement diesels.

Key Functions:

- 24 volt, clockwise rotation
- Delco Remy 50MT heavy duty starter

Fitment & Specifications:

- Cummins engines, 24V systems
- Delco Remy 50MT, clockwise
- Cummins 3651891, Delco Remy 8201026, 8200206

Verify fitment with us before ordering to ensure the correct part for your application.

Purpose of the Part

The 50MT is a heavy duty starter for large 24V diesels. The solenoid throws the pinion into the ring gear and sends current to the motor to crank the engine, then kicks back out once it fires. Being a 24V heavy duty unit, it depends on good batteries, cables and grounds to pull the current it needs.

Issue Symptoms / When to Replace

No crank or slow crank, a single click at the key, grinding, the starter spinning without engaging, or staying engaged after start. Heat soak no-crank when the engine is hot is common on these.

Check the batteries, cables and grounds first, on a 24V system a weak connection or one bad battery causes the same slow crank and no crank. Check the ring gear teeth if you hear grinding.

Brand Information

Cummins sources the 50MT from Delco Remy, the OE builder, so a genuine unit is the same starter the engine shipped with, not a rebuild of one. On a 24V heavy duty starter that pulls hard current, the genuine solenoid and internals are what hold up to repeat starts and heat.

Installation Notes

Get the pinion clearance and shims right if the old one used them, wrong engagement depth causes grinding and damages the ring gear. Torque the cable connections tight, loose cables cause heat and slow crank on a 24V starter.

How to Identify an OEM Part

A genuine unit has the Cummins logo and 50MT label with the Cummins P/N and the matching Delco Remy P/N, plus the Delco Remy nose casting marks. Check the numbers match your order. Copies use printed labels without the Delco Remy markings.
