9617222730 - Genuine Wabco Hand Brake Valve - 1 - wisentpartscenter.com

Description

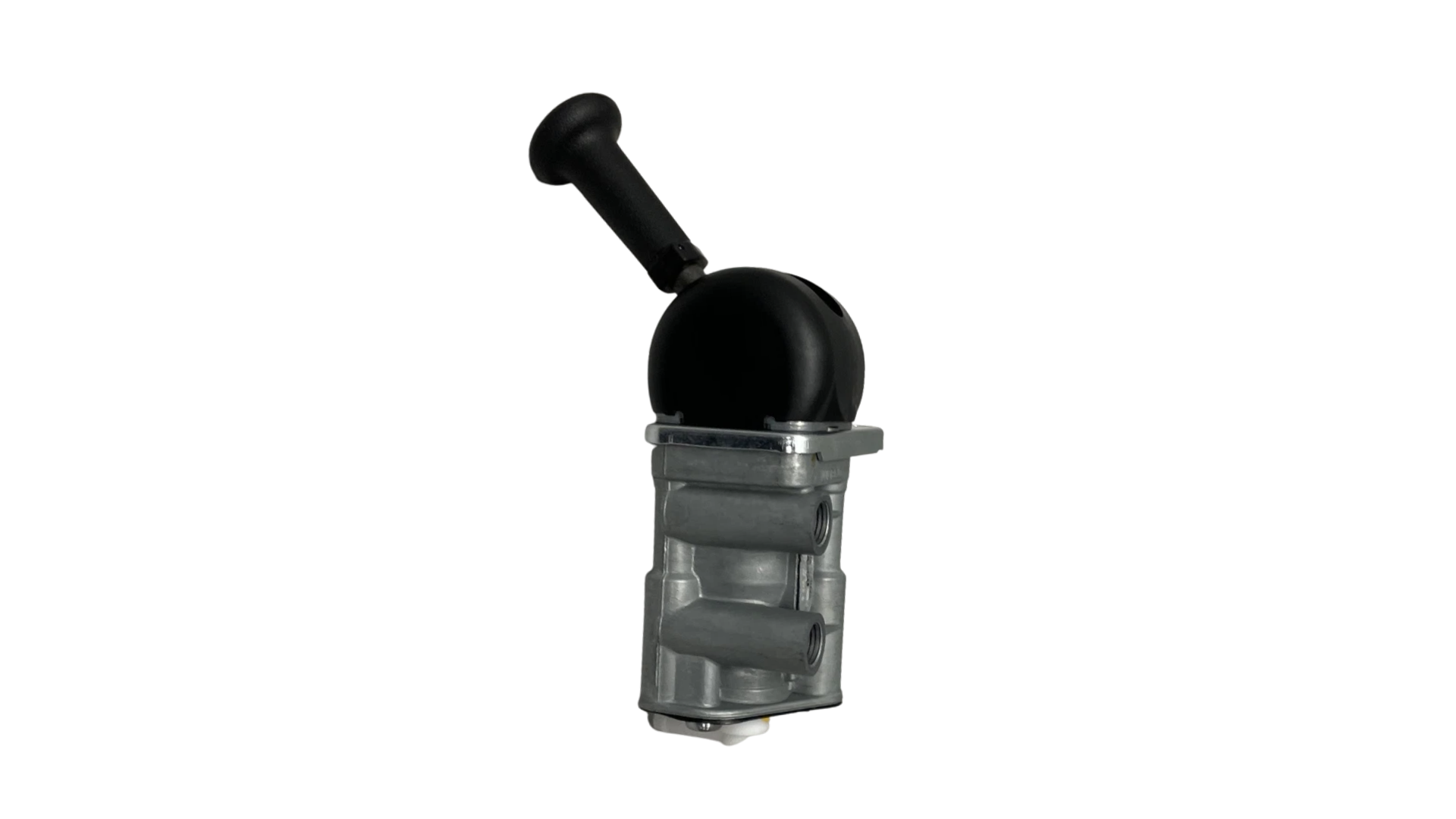

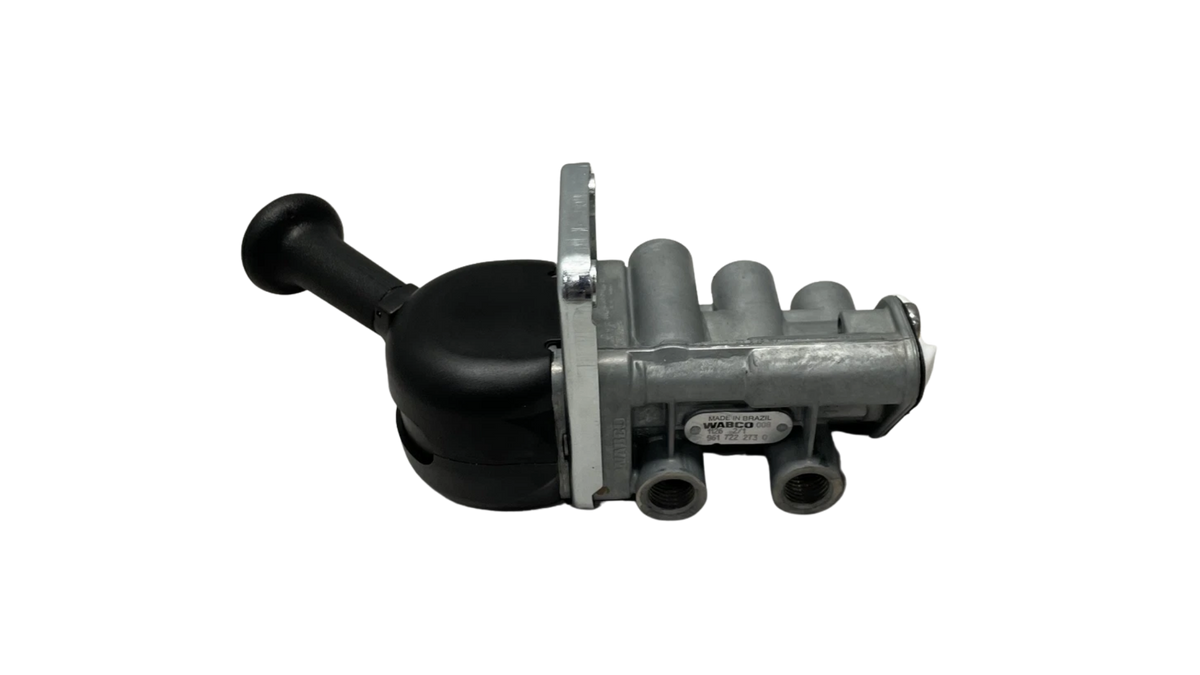

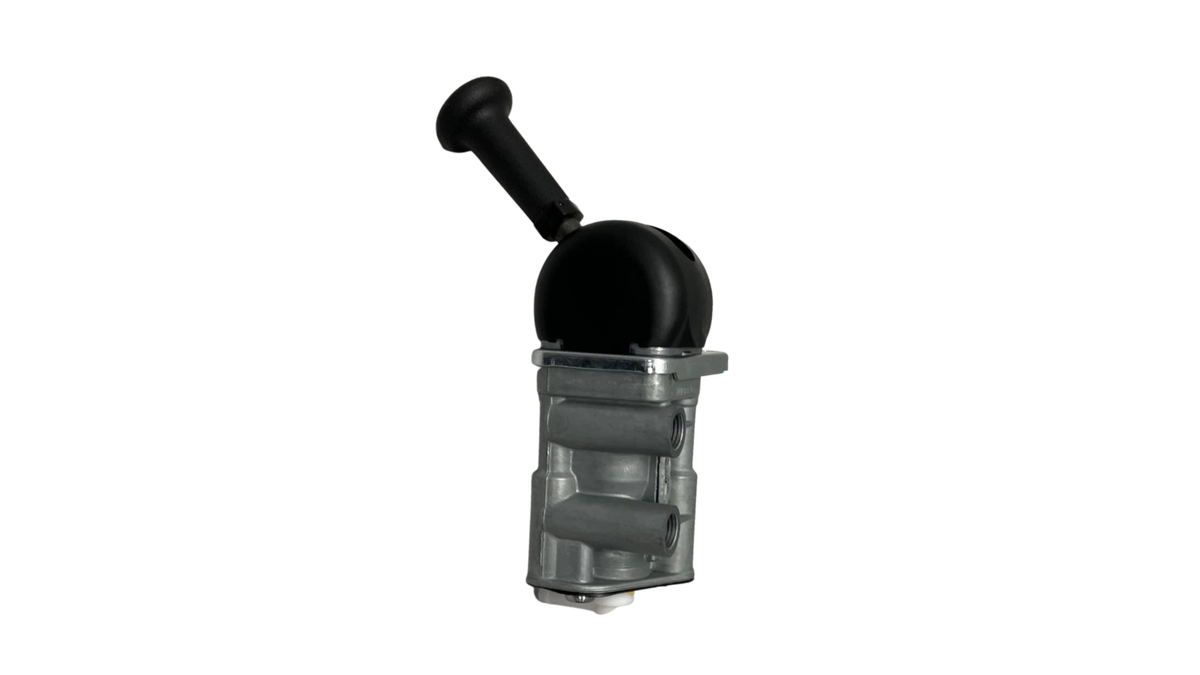

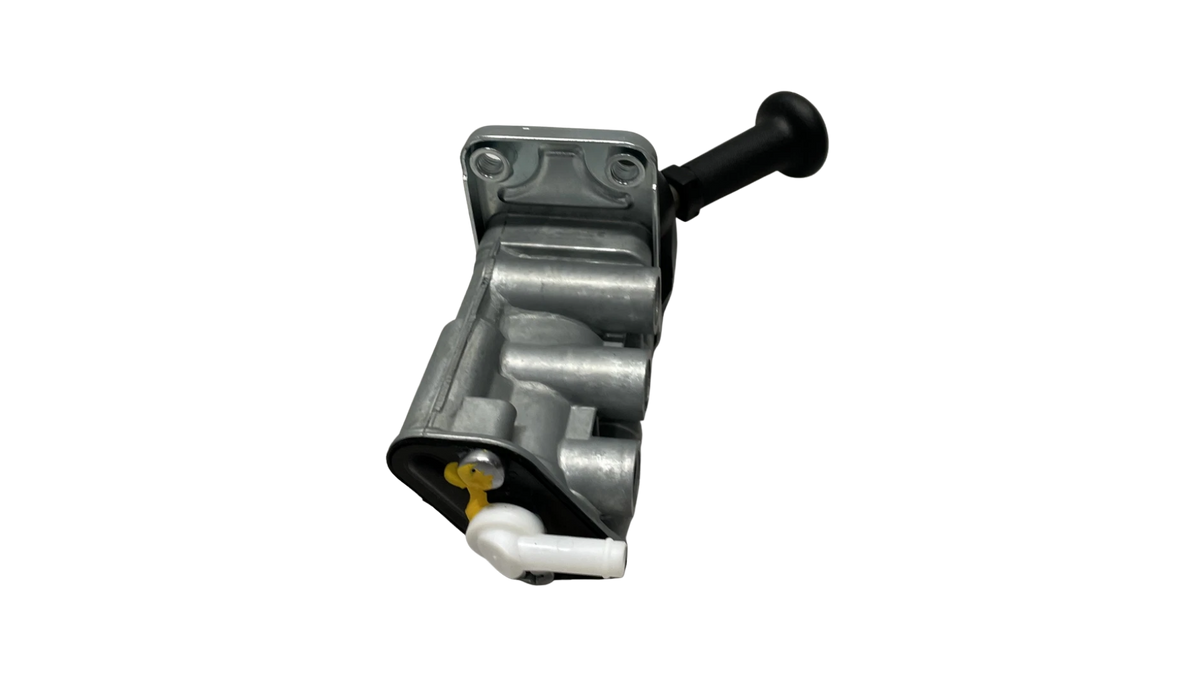

WABCO 9617222730 Hand Brake Valve - Genuine WABCO Park Brake Control Valve

The WABCO 9617222730 is a genuine hand brake valve, the dash mounted lever the driver pulls to set and release the parking brake on an air brake system. Pulling the lever exhausts air from the spring brakes to apply them, and pushing it back charges them to release.

Key Functions:

- Applies and releases the spring parking brakes
- Lever operated with a hold and detent position
- Air brake system control valve

Fitment & Specifications:

- WABCO air brake systems
- Hand lever, dash mount
- Made in Brazil

Verify fitment with us before ordering to ensure the correct part for your application.

Purpose of the Part

Spring brakes work backwards from service brakes, air holds them off and losing air lets the springs apply them. This valve is how the driver controls that on purpose. Pull the lever and it dumps the air out of the spring brake circuit to park the truck, push it in and it refills that circuit to release. It also has an automatic feature that applies the brakes if system pressure drops too low.

Issue Symptoms / When to Replace

The park brake not holding or not releasing, air leaking at the valve or out the exhaust port, the lever not staying in position, and slow release. A valve that leaks constantly bleeds air and can drag system pressure down.

Before replacing it, check the lines and fittings and the spring brake chambers, since a leak or a bad chamber acts the same as a bad valve. Confirm the system builds and holds normal air pressure.

Brand Information

WABCO, now part of ZF, is one of the original air brake system manufacturers, so a genuine valve is the design the system was built around. On a parking brake control that has to hold and release reliably and apply automatically on low pressure, that is not a place to trust an unbranded copy.

Installation Notes

Drain the air system before opening any lines. Label the ports as you disconnect them so the supply and delivery lines go back on correctly, since crossing them will stop the park brake from working right. Use thread sealant rated for air brake fittings, mount the valve, then charge the system and check for leaks and correct apply and release before the truck moves.

How to Identify an OEM Part

A genuine unit has the WABCO name and the material number on the label on the valve body, with MADE IN BRAZIL. Check the number matches your order and compare the port layout and the lever to the valve coming off. Copies usually have a different label and rougher castings.
